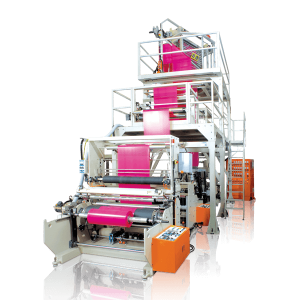

HDPE HIGH SPEED PLASTIC INFLATION MACHINE

: KMH-MINI

Film Width

100-550 mm

Screw Dia.

Ø 40 mm

Suitable Material

HDPE

SPECIFICATIONS

MODEL

KMH-MINI

SUITABLE MATERIAL

HDPE

FILM THICKNESS

0.008-0.10 mm

FILM WIDTH RANGE

550 mm

FILM OUTPUT

15-32 kgs/hr

EXTRUDER UNIT

SCREW L/D RATIO

26:1

HEATING CAPACITY

6.6 kw

AUTO THERMO CONTROL

3 zone

BARREL COOLING FAN

BARREL COOLING FAN

DRIVING MOTOR

AC 15 HP + Inverter

SCREW DIAMETER/TYPE

Ø 40mm

DIE UNIT

DIE DIAMETER

Ø60/80 mm

AIR RING DIAMETER

Ø120 mm

HEATING CAPACITY

6.6 kw

AUTO THERMO CONTROL

2 zone

COOLING BLOWER

3 HP

TAKE-UP UNIT

TAKE-UP ROLLER

550 mm

EFFECTIVE WIDTH

3 HP

TAKE-UP MOTOR

AC 1/2 HP

TAKE-UP SPEED

85 m/min

ELEVATING MOTOR

WINDING UNIT

ROLLER WIDTH

660 mm

WINDING WIDTH

550 mm

WINDING MOTOR

DC 1/2 HP

MACHINE DIMENSION

370×270×340 cm
